Adjusting storage locations

This page offers Best Practices for importing and exporting data. Before you use these Best Practices in order to exchange data, familiarise yourself with the functions of the FormatDesigner, the Elastic Export and ElasticSync. To do so, read the pages Creating data formats with FormatDesigner, Elastic Export and Importing data with ElasticSync.

1. Exporting data

In the first section of the Best Practices we will focus on the data export. First, we will show you how to create and assign data fields by using the FormatDesigner.

1.1. Creating and assigning data fields with the FormatDesigner

In the menu under Data » FormatDesigner you can create data formats for the export. In order to use it, the ElasticSync plugin has to be installed. In the following section we exemplarily create a template for storage location and thus for the data format WarehouseLocation. It contains all data fields that directly concern the storage location.

Table 1. Data fields WarehouseLocation
Setting Explanation

ID

The ID of a storage location is unique, as a new one is assigned to every storage location.

LevelID

ID of the level on which the storage location is located.

Label

Here you can enter a name for the storage location label.

Purpose

Purpose of the storage location, e.g. removal from storage

Status

Status of the storage location, e.g. active, inactive

Position

Position of the storage location (pick path)

Fullabel

Name of the storage location

Type

Type of the storage location, e.g. small, medium, large

Notes

Here you can make notes regarding the storage location

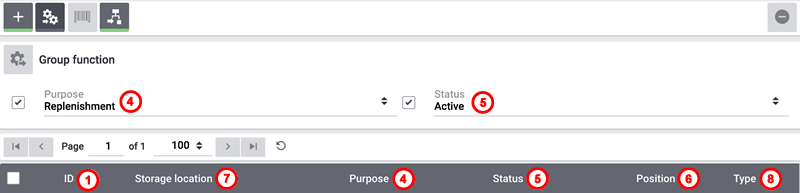

data fields warehouse structure
Figure 1. Data fields in the warehouse structure

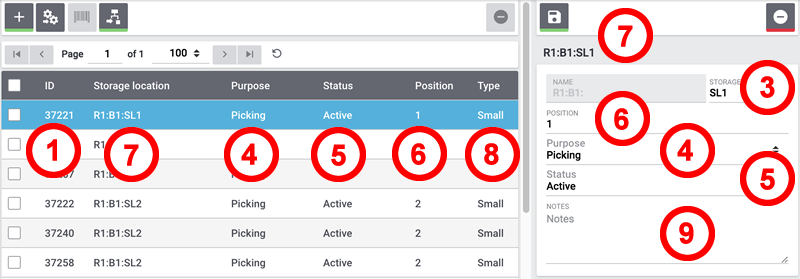

data fields in the structure manager
Figure 2. Data fields in the structure manager

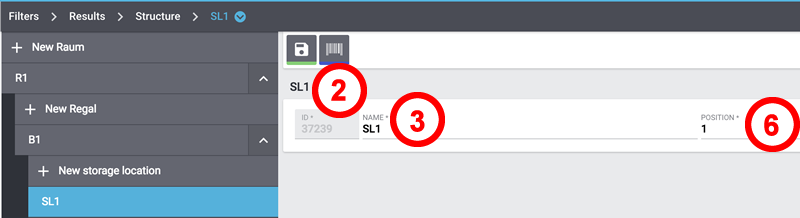

storagelocation data fields structure manager
Figure 3. StorageLocation data fields in the structure manager

In our example we use the FormatDesigner to create a sync of the type Warehouse and name it warehouseLocation.

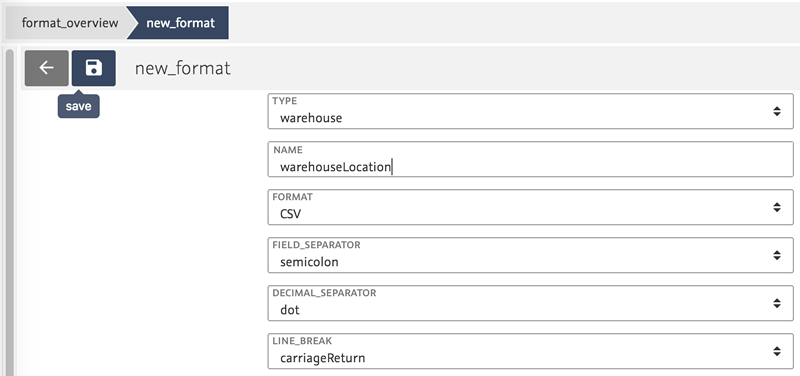

new template
Figure 4. New template

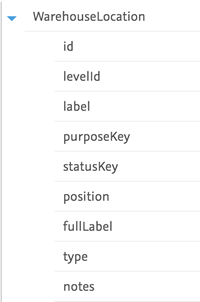

data fields warehouselocation
Figure 5. Data fields WarehouseLocation

By clicking on the data fields they are added to the template.
Save the settings.

This leads to the following assignment in the FormatDesigner.

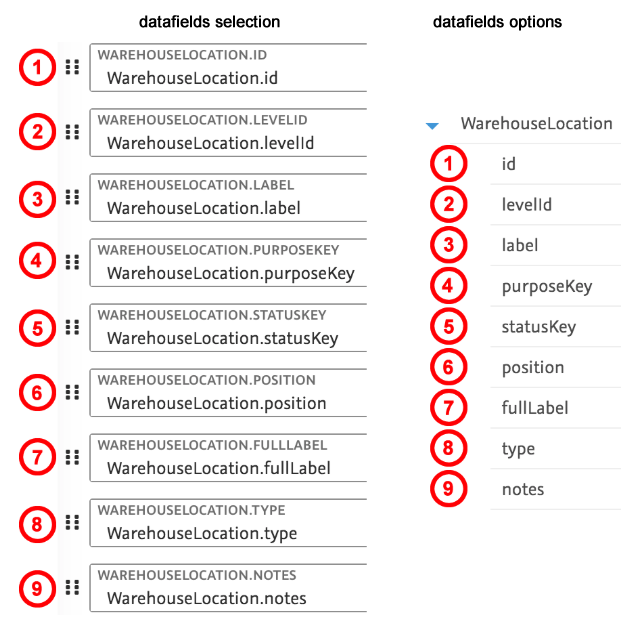

assignment data fields
Figure 6. Assigning the data fields

1.2. Exporting data with the Elastic Export

The Elastic Export allows you to export the templates that have been created in the FormatDesigner into the CSV format. If no Elastic Export can be created the plugin on plentyMarketplace has to be installed first.

1.2.1. Creating a new export

In the menu under Data » ElasticSync you can create a new export.

  1. Open the menu Data » ElasticSync.
    → The overview opens.

  2. Click on New export.

  3. Carry out the settings. Pay attention to the information given in Table 2.

  4. Save the settings.

  5. Refresh the token once again.

  6. Click on Download file.
    → The created CSV file can be edited in a spreadsheet programme.

  7. Once the data have been edited the file has to be saved under a new name.

Table 2. Creating a new export
Setting Explanation

Name

Insert a name. Under this name the export format appears in the overview of the Exports tab.

Type

From the drop-down list, select the data type that you want to export. Here we select the type warehouse.

Format

From the drop-down list, select the format for the export. Only formats that have been installed from the plentyMarketplace are available.

Limit

Enter a number. It is limited to 10,000 data records.

Provisioning

Select URL, FTP or Admin area. Different settings appear depending on which option is selected. Here we select the option URL.

Token

If you have selected the option URL under Provisioning, then click on Generate token. The token is entered automatically.

Filter

For the filter we select the option warehouse.

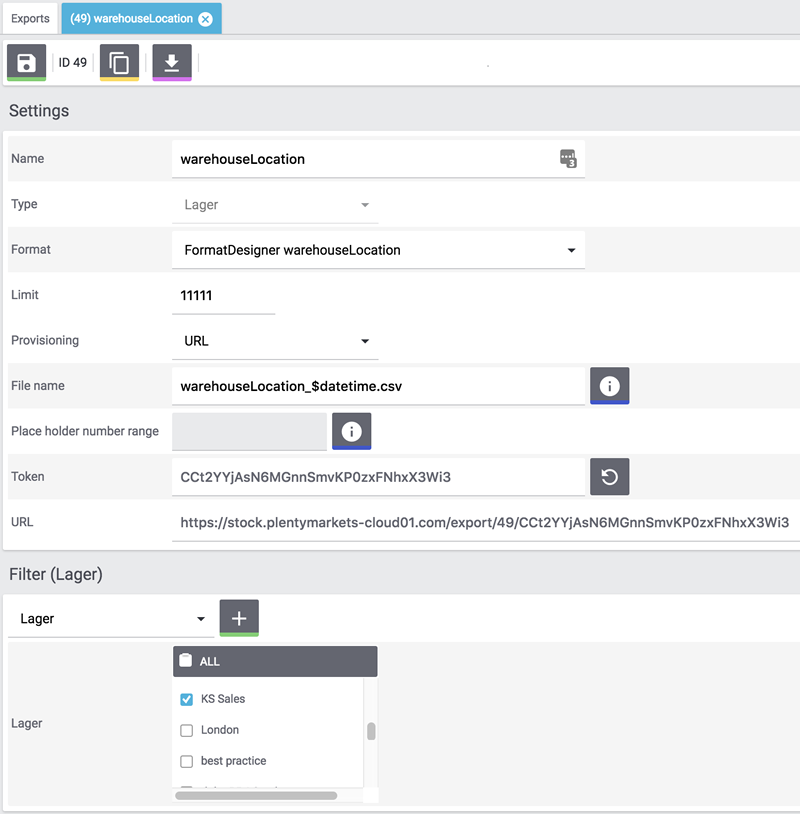

the form
Figure 7. The form

In the table the data look as follows.

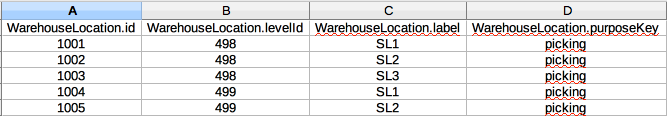

the data
Figure 8. The data

2. Processing data

In a next step the data are processed. The CSV file that has been created per Elastic Export can be opened in a spreadsheet programme.

csv file data unprocessed
Figure 9. CSV file data unprocessed

The data fields level, label, purpose, status, position, type and notes can be imported.
In the given example we changed the values of the position and of the notes.

csv file data processed
Figure 10. CSV file data processed

3. Importing data with ElasticSync

In the next section we will deal with importing data with ElasticSync. We will exemplarily create a sync of the type Warehouse.

  1. Go to Data » ElasticSync.
    → The overview opens.

  2. Click on Add sync.
    → The overview opens.

  3. Carry out the settings. Pay attention to the information given in Table 3.

  4. Save the settings.
    → The sync has been saved.

Table 3. Creating a sync
Setting Explanation

Name

Name of the sync

Type

Select which data fields can be assigned to the import data. In this example we select the type warehouse.

Data type

So far the only available data type is CSV.

Separator

The separator separates the different data types. In this example we use the separator semicolon.

Source

The CSV file is deposited in the source. In this example we use the data upload which will soon be available as own option field.

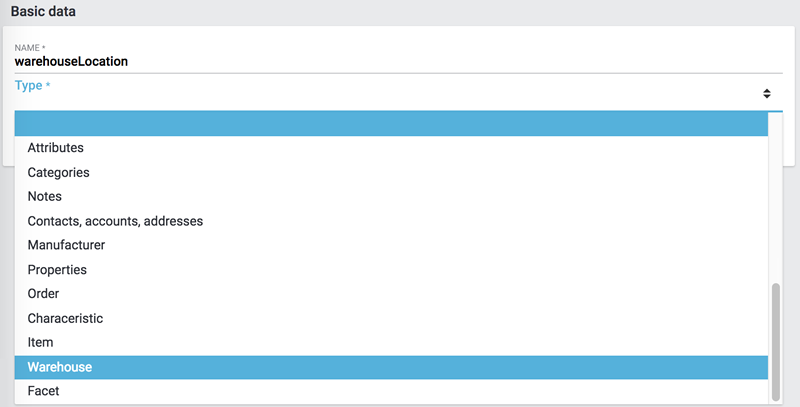

type selection
Figure 11. Type selection

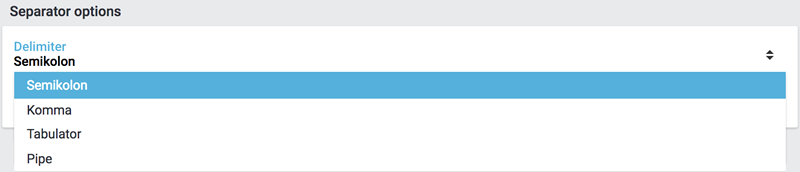

separator
Figure 12. Separator

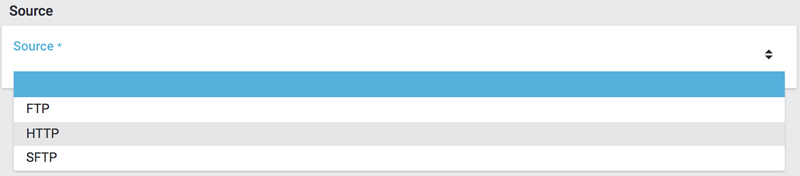

source
Figure 13. Source

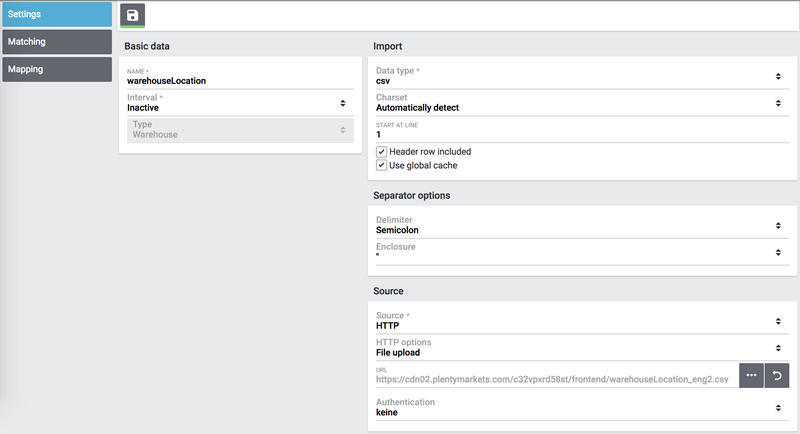

overview basic data
Figure 14. Overview basic data

The data upload is next, for which we use a local CSV file. In this case we select HTTP as source and data upload as HTTP option.

  1. Click on Select file to open the file manager.

  2. Click on Update file to provide a new file.

  3. Select the CSV file from the file manager.

  4. Click on Open.
    → The file is saved in the list under My files.

  5. Tick the box and select the file.
    → The file is loaded into the source directory.

  6. Save the settings.

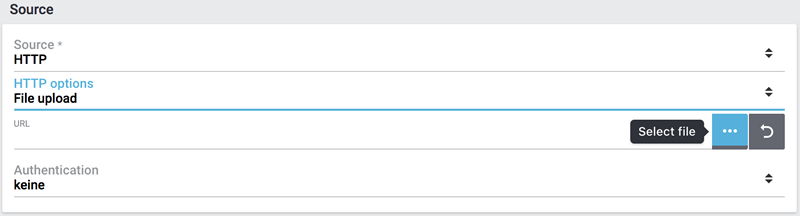

file upload
Figure 15. File upload

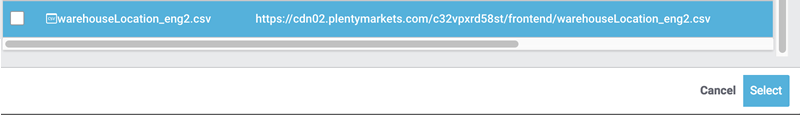

select file
Figure 16. Select file

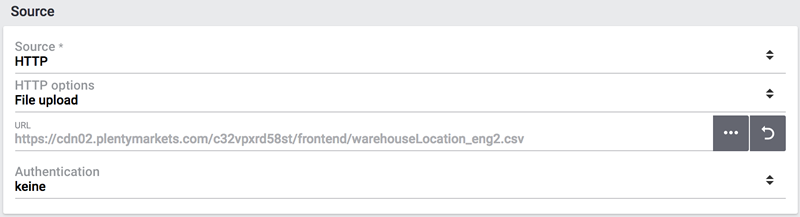

load file in source directory
Figure 17. Load file in source directory

3.1. Matching

For the matching it is necessary to determine and assign the data in order to figure out which data of the file correspond to which data in plentymarkets.

matching
Figure 18. Matching

With the matching you determine by which data it is examined whether a data record already exists.
In this example the WarehouseLocation ID is used for the matching.

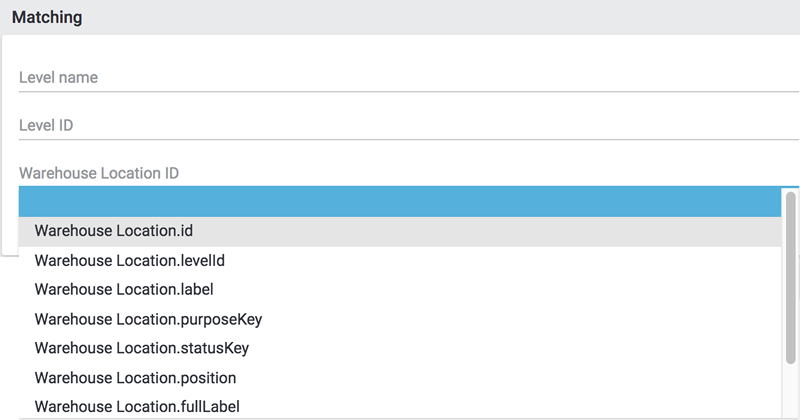

select matching
Figure 19. Select matching

3.2. Import options

Here it is determined whether only new data, only existing data or new as well as existing data should be imported.

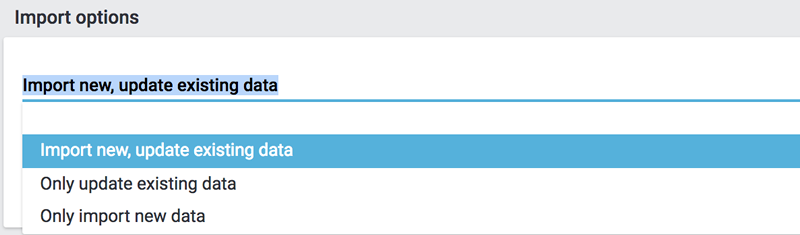

import options
Figure 20. Import options

Save the settings.

3.3. Creating a mapping

In the mapping the imported data are assigned to the plentymarkets data fields.

mapping
Figure 21. Mapping

At first a mapping needs to be created.

  1. Click on the field Mapping
    → The overview opens.

  2. Click on the plus Add mapping.

  3. Select a name.

  4. Save the settings.
    → The mapping has been created.

3.4. Assigning data fields

The data to be imported have to be assigned to the plentymarkets data fields.

  1. Click on + Field.
    → The overview of the import data and the plentymarkets data fields opens.

  2. Click in the field Target and select the corresponding data field.

  3. Click on Activate row in order to activate the import data.

  4. Save the settings.

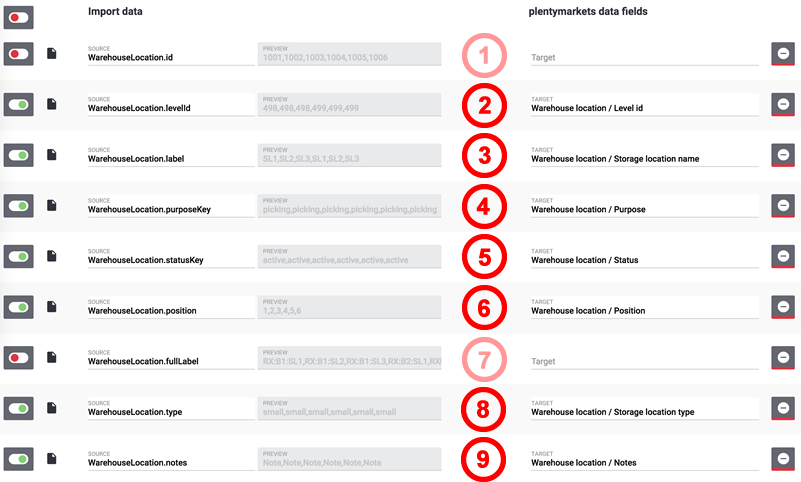

assign data fields
Figure 22. Assigning data fields

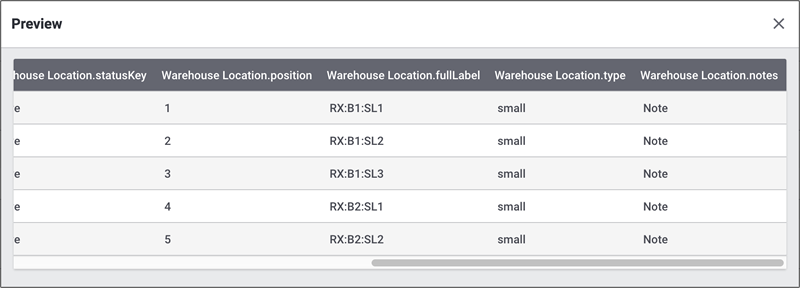

Click on Preview in order to display the changes of the first rows.

preview
Figure 23. Preview

3.5. Testing and running a sync

By clicking on Test sync it is checked whether the inputs would lead to a successful process of the sync.

test sync
Figure 24. Test sync

By clicking on Run sync the sync is started and loaded into the queue.

run sync
Figure 25. Run sync

3.6. The result in the structure manager

In the structure manager the the result is displayed as follows.

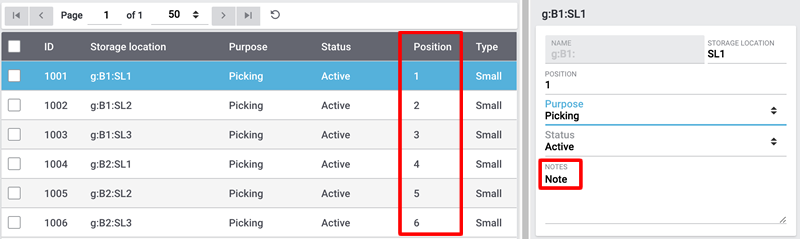

display in structure manager
Figure 26. Display in structure manager
